Custom Deep-Drawing Tooling
Every project starts with a DFM review of forming limits, wall thickness, tolerance and demolding risk, then tooling is built in our own workshop.
01Core CapabilitiesProcess, materials, inspection, custom work, parameters, applications
PROCESS · MATERIALS · QC · CUSTOM
Core Manufacturing Capabilities
Complex deep-drawn metal parts, built from your drawing, sample or concept. Tooling, forming, food-grade control and secondary finishing stay in one factory workflow.
Deep Drawing Fabrication
Seamless multi-stage drawing for irregular, thin-wall and high draw-ratio parts in 304, 316, 403 stainless steel, aluminum and copper.
Quality & Food-Grade Control
Incoming material checks through final inspection. Food-contact grades, salt spray testing, dimensional checks and test documents on request.
OEM & ODM Custom Service
Build-to-print or joint development. Prototypes, low-volume trials and mass production, with polishing, finishing and partial assembly in-house.
Production Flow
Drawings and samples come first. Quotation follows DFM. Tooling, samples and mass production come after the process is confirmed.
1
Submit Drawings
CAD, PDF or sample
2
DFM Review
Forming risk first
3
Quotation
Material, finish, qty
4
Mold Development
In-house tooling
5
Trial Sampling
Multi-stage drawing
6
Sample Approval
Confirm the part
7
Mass Production
In-line QC
8
Shipping & Support
Export packing
Materials
Metals We Form
- 304 StainlessFood-safe kitchenware and general household parts
- 316 / 316LHigher corrosion resistance for filtration and drinking systems
- 403 / 430Cost-effective structural and appliance drawn parts
- AluminumLightweight formed parts with finishing options
- Copper & BrassConductive parts and decorative metalwork
Other grades can be evaluated by engineering before quotation.
Parameter Sheet
What Buyers Check First
| Thickness | 0.2 mm – 4.0 mm |
|---|---|
| Press range | 120T – 350T hydraulic |
| Forming | Multi-stage deep drawing, intermediate annealing |
| Finish | Brush, mirror, sandblast, passivation, degrease, anti-fingerprint |
| Inspection | Incoming, first article, in-process, CMM, final |
| Salt spray | ≥ 48 hours, arranged to your standard |
| Documents | ISO 9001, RoHS, MTC, FAI, salt spray report |
| Food contact | FDA 21 CFR and 3-A SSI on request |
| MOQ | 500 pcs standard; 100–300 pcs trial with setup fee |
Applications
Where These Parts Are Used
- Kitchen & tableware metal components
- Home appliance & filtration housings
- Pet appliance metal accessories
- Home decor & special custom drawn parts
- Industrial fluid & equipment components
02Product CatalogFind a category, then send the drawing
PRODUCT CATALOG
Lead Parts in Each Application
Each application opens with the reference builds specified most often. Process, material, wall thickness and finish are still set from your drawing.
Deep Drawn Kitchen & Catering Parts
Custom stainless steel components for food, beverage, kitchen and bar applications.
Stainless Steel Pint Cup
Reference XG-KC-01
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Stainless Steel Airtight Sealed Can
Reference XG-KC-02
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Deep Drawn Pet Hardware Components
Food-grade stainless steel components designed for pet feeding and drinking systems.
Stainless Steel Slow Feeder Bowl
Reference XG-PT-01
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Stainless Steel Pet Feeding Bowl
Reference XG-PT-03
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Appliance & Equipment Housings
Precision formed housings, inner tanks and functional components for small appliances and equipment.
Mixing Bowl / Dough Bowl / Salad Bowl
Reference XG-AP-05
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Stainless Steel Milk Frother Jug
Reference XG-AP-06
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging

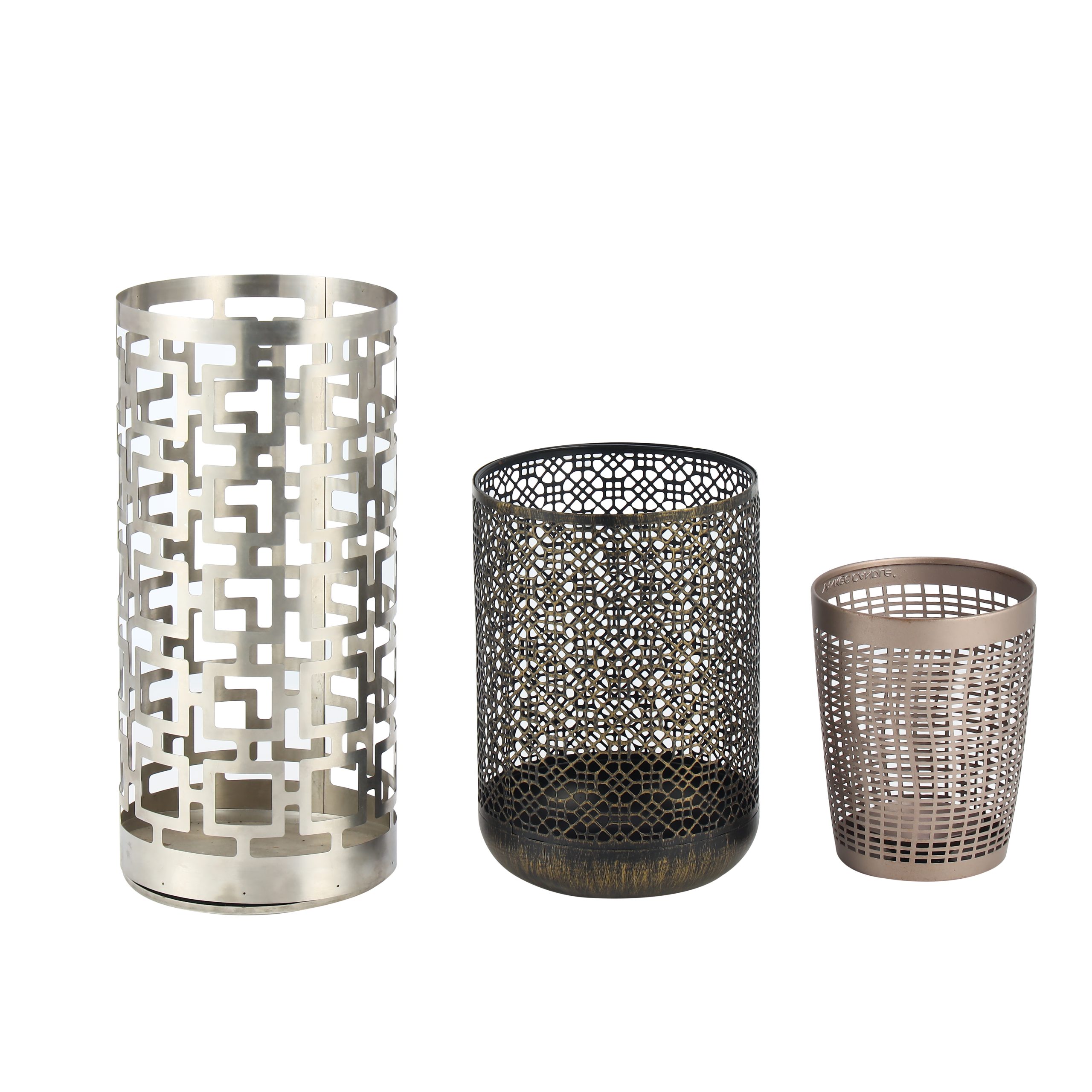

Home Decor & Custom Deep Drawn Parts
Decorative and non-standard metal components with custom shapes, finishes and structures.
Stainless Steel Candle Shade
Reference XG-HD-01
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
Stainless Steel Hollow Lamp Shade
Reference XG-HD-02
- Process
- Multi-stage stainless steel deep drawing, with stamping or secondary machining…
- Material
- SUS304 / SUS316 / SUS316L options
- Custom
- Material, diameter, height, wall thickness, geometry, openings, finish, marking and packaging
03Project CasesBrands supplied from this workshop
OUR PARTNERS
Brands We Manufacture For
Deep drawn metal parts supplied to kitchen, appliance and home brands.
04About the FactoryWorkshop, presses, and how we work
About the Factory
A Dongguan Deep Drawing Workshop, Not a Trading Desk
Dongguan Xiongen Hardware runs a 2,000㎡ workshop in Chashan. Tooling, 120T–350T hydraulic presses, secondary finishing and inspection sit on one site, so a drawing can move from DFM to sample to repeat production without being handed to another factory.
- 10+
- Years forming stainless steel
- 2,000㎡
- Chashan workshop
- 120–350T
- Hydraulic press range
- 20+
- Export markets
NEWS & INSIGHTS
Deep Drawing Knowledge & Manufacturing Insights
Choosing Stainless Steel for Food-Contact Deep Drawn Components
304 and 316/316L are common choices for kitchen, beverage and pet-feeding parts. The right grade also depends on the use…
Read More →
How DFM Review Helps Reduce the Cost of Custom Deep Drawn Parts
Design for Manufacturability checks whether a deep drawn part can be produced reliably and economically before tooling begins.
Read More →
What Is Multi-Stage Stainless Steel Deep Drawing?
Multi-stage deep drawing forms a flat metal blank through several stages when a part cannot reach its depth or geometry…
Read More →05Send a DrawingDFM review and quotation come after the process is clear
REQUEST A QUOTE
Have a Complex Deep Drawn Metal Part to Develop?
Send us your drawing, sample or concept. Our engineering team will review your project and help evaluate the most practical manufacturing solution.
